Range of common spare parts used on coil winding machines

Shown below is a range of spare parts used on our bench top series as well as many of the consumables to suit almost every winding machine on the market.
Quotation / Information Request Simply fill out the form below, and we'll get back to as soon as possible with price and delivery information. Most items are ex-stock, and we can usually dispatch the same day.- Alternatively, we will be very pleased to deal with your enquiry by 'phone, fax or E-mail
Guide tubes Specifications/Special Features:3mm OD*available in a series of bore sizes **, features highly polished bore, protecting the enamel coating on copper wire using.
*Suitable for our range of bench top coil winding machines ...
WH-800(i)WH-764WH-751- when fitted with appropriate guide head
**Recommended to use a bore size 1.5 * wire diameter as a general rule of thumb.
Guide tube bore size  (mm) Quantity required Guide tube bore size  (mm)
Quantity required
0.3 0.8
0.5 1.0
1.2 1.5

Download the product datasheet here
Ceramic Parts Specifications/Special Features: *Using ceramic at every point of wire contact protects the enamel coating on copper wire.
*Suitable for our range of bench top coil winding machines ...WH-800(i)WH-764WH-751- when fitted with appropriate guide head
caramic roller
IWM1001 ceramic pulley- with bearing (20mm OD/ 3mm ID)
   caramic roller NT4 Tensioner arm end with captive ball wire wire retention and fast loading / feeding
caramic roller
IWM1002 ceramic pulley- with bearing (28mm OD / 4mm ID)

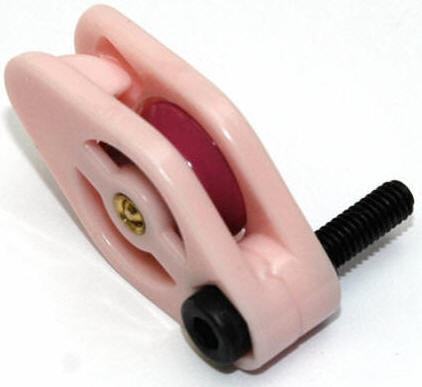

   caramic roller NT3 Tensioner arm end with captive finger, providing wire retention and fast loading / feeding

caramic roller
Used on the WH764 guide head, however this can be used anywhere else in wire guide path


Grub screw with spring loaded ball
Key Specifications/Special Features: Useful device for tooling, bobbin holders, simply drill and tap correct sized hole and this can be screwed in so that the body is flush with the surface and ball is sprung in the outer position, providing a "snap action

spare parts for coil winding machinesspare parts for coil winding machines

D D1 E L L1 P (g) Qty Required
M4 2.5 0.6 9 0.8 1.02 1
M5 3 0.8 12 0.9 1.12 2
M6 3.5 1 14 1 1.33 3
M8 5 1.2 16 1.5 3.06 4
M10 6 1.6 19 2 3.57 5
M12 8 2 22 2.5 5.61 10
M16 10 2.5 24 3.5 12.75 20
Electronics and other parts specific to our machines
caramic roller Turns Sensor specifications/Special Features:Located inside the main machine housing, this opto coupler counts turns wound via the slotted disk on the spindle shaft.
*Suitable for our range of bench top coil winding machines
WH-800(i), WH-764, WH-752, WH-751		   caramic roller
A09 Main tension wheel  replacement rubber
caramic roller Home / Reset Sensor Specifications/Special Features: Located inside the main machine housing, this opto coupler measures the zero position precisely during  machine reset.
**Suitable for our range of bench top coil winding machines
WH-800(i), WH-764, WH-752, WH-751		 caramic roller
Back up battery Key Specifications/Special Features:Located inside the main controller on the top CPU board, this battery is responsible for retention of Programs in memory.
**Suitable for our range of bench top coil winding machines
WH-800(i), WH-764, WH-752, WH-751, WH-900, WH900a, WH-300
Your name:
Company name:
Address:
Town:
City:
County:
Postal Code:
Country
Your e-mail address:
Your Web address:
Full Telephone number:
Full Fax number:
Comments Please explain any "other" selections from above or add any comments that may help us to understand your application.
Alternatively go to the following page, print it out and use it as a fax back form Fax back form.
other parts available from IWM, please contact us for details
